ARMAGLASS STRUCTURA 320
320 grams/m2 of alkali-resistant fibreglass structural mesh
ARMAGLASS STRUCTURA 320
320 grams/m2 of alkali-resistant fibreglass structural mesh
ARMAGLASS STRUCTURA 320
320 grams/m2 of alkali-resistant fibreglass structural mesh

ARMAGLASS STRUCTURA 320

320 grams/m2 of alkali-resistant fibreglass structural mesh

Cod: RNF.0373

Componente: 1

Aspect: Plasă

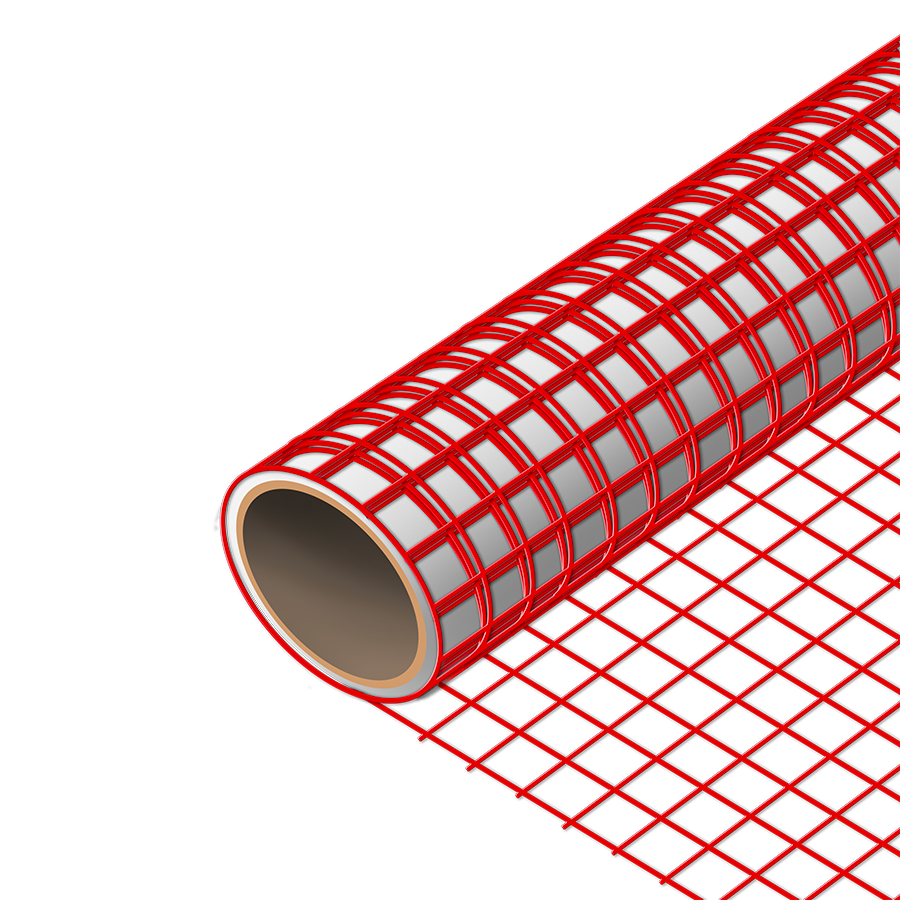

320 gram/square metre structural mesh made of alkali-resistant fibreglass, containing >16% zirconium dioxide, constructed in English-style lap primed with thermosetting polymer. Easy and quick application, simple to handle and to cut. Combines lightness and thinness with excellent mechanical characteristics in terms of the weft and warp. Resistant to atmospheric agents and aggressive environments, it confers durability to the composite systems in which it is used. Suitable for any substrate and perfectly compatible with both cement-based and lime-based mortars.

Cod vamal

7019 9000

Linee di appartenenza

Caracteristici generale

Neinflamabil

Conservare nelimitată

Potrivit pentru contactul cu apa potabilă

Lărgime: 100 / 200 cm

Utilizaţi produsul cu mănuşi de protecţie

Lungime: 50 m

Rezistent la razele UV

Specificații tehnice

Material rezistent la alcalini

Rezistență la tracțiune la urzeală (viteză la tracțiune 10 mm / min)

63.5 kN/m

Rezistență la tracțiune la urzeală (viteză la tracțiune 100 mm / min)

72.5 kN/m

Rezistența la tracțiune cu un singur fir de urzeală (viteză de tracțiune 10 mm / min)

1.27 kN

Rezistența la tracțiune cu un singur fir de urzeală (viteză de tracțiune 100 mm / min)

1.45 kN

Rezistența la tracțiune a bătăturii cu un singur fir (viteză de tracțiune 10 mm / min)

1.37 kN

Rezistența la tracțiune a bătăturii cu un singur fir (viteză de tracțiune 100 mm / min)

1.38 kN

Rezistența la tracțiune (viteză la tracțiune 10 mm / min)

68.5 kN/m

Rezistența la tracțiune (viteză la tracțiune 100 mm / min)

69 kN/m

Grosime echivalentă pentru urzeală

0.044 mm

Grosimea texturii echivalente

0.044 mm

Secțiune rezistentă la urzeală

44.776 mm²/m

Greutatea țesăturii îmbrăcate

320 g/m²

Greutatea materialului brut

240 g/m²

Grosime

1.15 mm

Întinderea la rupere longitudinală

1.80 %

Zona nominală cu un singur fir

0.9981 mm²

Densitatea sticlei

2.68 g/cm³

Dimensiunile ochiurilor

20 x 20 mm

Modul elastic net (urzeală)

66750 N/mm²

Modul elastic net (bătătură)

61680 N/mm²

Modul elastic din sticlă

72000 N/mm²

Culori disponibile

- Roșu

Ambalaje şi dimensiuni

- Rolă 100 m²

- Rolă 50 m²

Consumuri

1.1 m/m²: The sheets adjacent to the fibreglass mesh are to be overlapped along the edges by at least 10 centimetres.

Domenii de utilizare

ARMAGLASS STRUCTURA 320 is a mesh for the structural reinforcement and consolidation of masonry and vaulted structures. It is ideal for reinforcing plasters with anti-overturning function, for the reinforcement and distribution of shrinkage stresses on walkable or drainage screeds and concrete flooring.

Mod de utilizare

Application on masonry and vaults:
In the event that connectors are being used, proceed with creating holes of a suitable diameter, in accordance with the chosen connection system and arranged in line with the design instructions and with the selected connection system (ARMAGLASS CONNECTOR, ARMAGLASS CONNECTOR SINGLE, ARMAGLASS CONNECTOR TWIN). Secure the connectors with resin anchors (SYNTECH PROFIX) or hydraulic binder-based slurry (GROUT CABLE, SANAFLUENS). Apply an initial layer of mortar (see the technical data sheet of the selected product), positioning the ARMAGLASS STRUCTURA 320 mesh on the still-fresh mortar, taking care to ensure an overlap of at least 10 centimetres, before applying the second layer of mortar. Whilst the mortar is still fresh, lay the mesh sheeting, proceeding from top to bottom, and immersing with the help of a putty knife, being sure to overlap each segment by at least 10 centimetres and impeding the formation of bubbles and bends.
Application on screeds:
Apply an initial layer of screed (see the technical data sheet of the selected product), laying the ARMAGLASS STRUCTURA 320 mesh on the first layer of still-fresh screed, taking care to ensure an overlap of at least 10 centimetres, then applying the second layer of screed.
